Single Open 40m3/H 60" 0.1Um PP High Flow Filter Cartridge

Brand Name : Pullner

Model Number : PHFL

Certification : ISO 9001

Place of Origin : Songjiang

MOQ : 1

Price : USD+ 44.83-224.16+Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 + pieces +per + day

Delivery Time : 7 work days

Packaging Details : carton packing

Length : 20''/40''/60''

Diameter : 6''

Material : PP/PET/GF

Micron : 0.1Um-100Um

Max. operating temperature : 121℃

Suggestion design flow : 40'': 18-25m³/h

Suggestion Max flow : 40'': 78m³/h

Suggestion pressure for filter replacement : 2.5Bar@20℃

Flow type : inside to outside

Support : Outer Belt/PP Outer Cage/Polyester Mesh

Contact Now

PHF series high-flow filter cartridge adopts 6" large diameter structure with single open end. The filter body is divided into two types: pp pleated and melt blown. All connection use thermal welding, no any adhesive, has wide Chemical compatibility, can be applied to food and beverage filtration.

PHFLH series high temperature resistant high flow filter cartridge adopts 6" large diameter structure, single open end, no center core, outer cage is made of 304 stainless steel, filter material and support layer are made of high temperature resistant materials, which can be long-term under the condition of 120℃ use.

Material Construction

Filter Media

PP:Deep Pleated PP/

Melt PP

 FO:Organic Fiber GF:Glass Fiber/Polyester
Support/Drainage PP Organic Fiber Polyester
End Cap Material Fiberglass reinforced polypropylene Fiberglass reinforced polypropylene Fiberglass reinforced polypropylene

Performance

Maximum Operation Temperature

PP:82°C

FO:120℃

GF:121℃
Maximum Operation Differential Pressure

PP:3.44bar / 21°C

FO:3.44bar / 120°C

GF:3.44bar / 121°C

Flow Rate and Filtration Area

Size

(Diameter*Length)

Design Flow

(m3/hr)

Maximum Flow

(m3/hr)

Filtration Area

(㎡)
6"*20" 15 40 2.6
6"*40" 30 80 5.2
6"*60" 45 120 7.8

Ordering Information

PHF L PP 0500 40 G V

Series Type Media Micron Length Structure Seal Material End Cap Type
PHF L PP 0010 =0.1μm 1500 =15μm 20 =20" G =PP Outer Cage V =Viton ZA =Single-Ring(HFK)
LH PBT 0100 =1.0μm 2000 =20μm 40 =40" M =Melt blown S =Silicone ZB =Double-Ring(HFK)
K GF 0500 =5.0μm 4000 =40μm 60 =60" S =Plastic net E =EPDM ZA =一Type(HFM)
M 1000 =10μm 7000 =70μm ZB =十Type(HFM)
1000 =100μm None =(HFL/HFLH)
Single Open 40m3/H 60" 0.1Um PP High Flow Filter Cartridge
Single Open 40m3/H 60" 0.1Um PP High Flow Filter Cartridge

Product Tags:

0.1Um High Flow Filter Cartridge



40m3/H High Flow Filter Cartridge



0.1Um water filter cartridge


Wholesale Single Open 40m3/H 60" 0.1Um PP High Flow Filter Cartridge from china suppliers

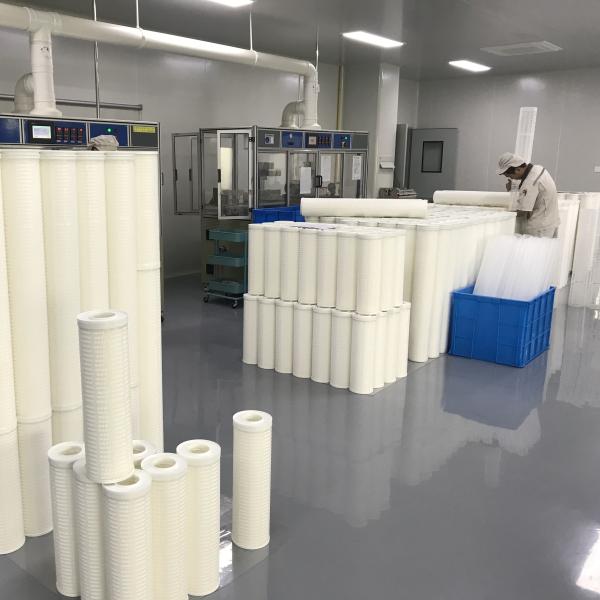

Single Open 40m3/H 60" 0.1Um PP High Flow Filter Cartridge Images
